Laboratory centrifuge CD-0506
medicalmultifunctionblood

laboratory centrifuge
laboratory centrifuge
laboratory centrifuge
Add to favorites
Compare this product


Characteristics

Applications
laboratory, medical
Function
multifunction
Sample type
blood
Configuration
benchtop
Rotor type
fixed-angle
Performance
low-speed
Operation
automatic
Speed

Max.: 5,000 rpm
(31,415.9 rad.min-1)

Min.: 300 rpm
(1,885 rad.min-1)

RCF max (g)

2,600 unit

Noise level

54 dB

Weight

5.2 kg
(11.5 lb)

Length

30 cm
(11.8 in)

Width

24 cm
(9.4 in)

Height

18 cm
(7.1 in)

Description

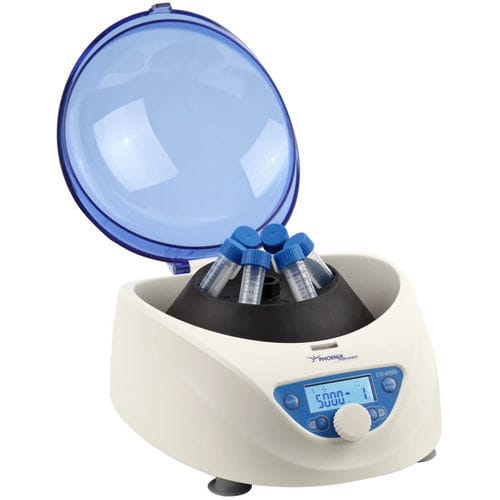

The new centrifuge CD-0506, supplied with a built in fixed angle rotor which can hold up to 6 tubes each 15ml/10ml/ 7ml/5ml/ 1.5/2ml. It is widely used for blood or urine separation in medical routine practice in hospitals, clinics or research institutes. • Rotor speed can be set and displayed by RPM or G-force • Defined program by knob will be stored and activated when power on • Two programs P1/P2, easy to start the procedure by one key • Two deceleration speeds setting to meet different requirements • Easy-to-read processing display and sound alert • Automatic lid-lock release after running • Maintenance-free brushless DC motor • Rotor and Adapter included Technical data Increment 10 rpm Timer 0.5-99 minutes, continous max. Capacity 6 x 15 ml Rotor 54° fix angele Safety Door interlock, overspeed detector, automatic internal diagnosis Voltage • Frequency 100 - 240 V • 50/60 Hz Power 70 W Shipping includes Rotor and adapter
