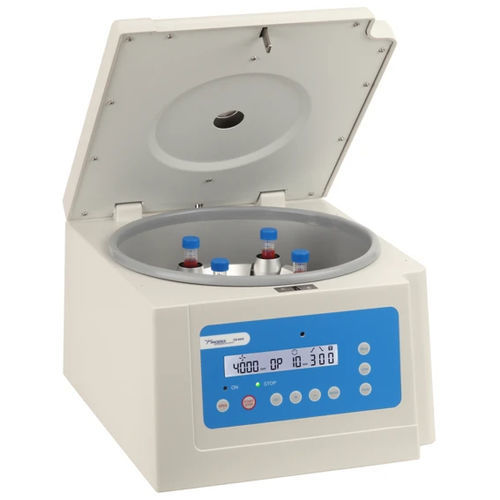

Laboratory centrifuge CD-0424
clinicalmultipurposemultipurpose

Laboratory centrifuge - CD-0424 - Phoenix Instrument - clinical / multipurpose / multipurpose
Laboratory centrifuge - CD-0424 - Phoenix Instrument - clinical / multipurpose / multipurpose
Add to favorites
Compare this product


Characteristics

Applications
laboratory, clinical, multipurpose
Function
multipurpose
Sample type
blood
Configuration
benchtop, compact
Rotor type
swing-out, fixed-angle
Speed

Max.: 4,000 rpm
(25,132.7 rad.min-1)

Min.: 500 rpm
(3,141.6 rad.min-1)

RCF max (g)

2,500 unit

Noise level

62 dB

Weight

14.5 kg
(32 lb)

Length

44 cm
(17.3 in)

Width

37 cm
(14.6 in)

Height

27 cm
(10.6 in)

Description

The new multi-purpose centrifuge CD-0424 is versatile and can be used in applications from clinical to biochemical for qualitative analysis of serum, plasma, blood, and urine. • Maximum up to 4000rpm Speed can be set in RPM/RCF, with 3 customizable routines programs (Blood, Urine & Fecal) • 3 acceleration level & 4 level deceleration • Maximum capacity 50mL ×4, Suitable for different sizesof blood collection tubes and centrifuge tubes for both, swing-out and fix angle rotor • Quiet, compact, and convenient with Easy-to-read LCD display • Automatic internal diagnosis and self-detection • Maintenance-free brushless DC motor. Technical data Increment - 100 rpm Timer - 1 - 99 min. .continous Max. capacity - 4x50 ml Safety features - Door interlock, overspeed detector, automatic internal diagnosis Voltage • Frequency 100 - 240 V • 50/60 Hz Power - 70 W Shipping includes - 4 x 50 ml swing rotor and adapter Accessories CD-S6-15 Swing rotor for CD-0424, 6 x 15 ml, max. 4,000 rpm CD-S4-50 Swing rotor for CD-0424, 4 x 50 ml, max. 4,000 rpm CD-24-15P Swing rotor for CD-0424, 24 x 15 ml, max. 4,000 rpm CD-A8-15P Swing rotor for CD-0424, 8 x 15 ml, max. 4,000 rpm CD-15-P30 Adapter 50 ml to 15 ml, for Tubes 17 x 120 mm and 13/16 x 100 mm Tubes, 4 pcs. CD-15-P22 Adapter 15 ml to 13/16 x 100 mm, 24 pcs. CD-A5-P17 Adapter 15 ml to 5 ml, 13 x 75 mm, 24 pcs. CD-A2-P17 Adapter to 2 ml, 24 pcs.

Catalogs

Catalog 2024
Catalog 2024
124 Pages
Centrifuges
Centrifuges
12 Pages
