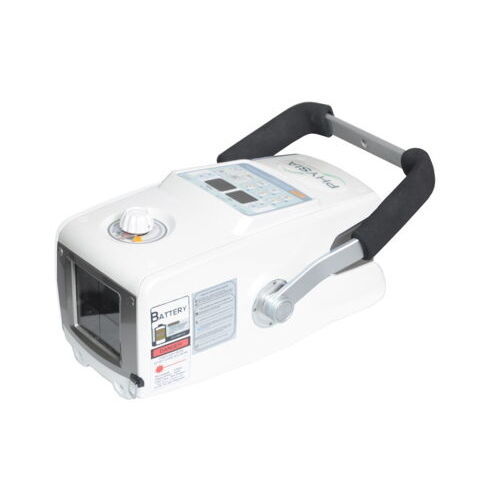

Veterinary radiography X-ray generator GAMMA portablewith power supply
Add to favorites
Compare this product
Characteristics
- Type of imagery
- for veterinary radiography
- Ergonomic design
- portable
- Options
- with power supply
- Output power
1.6 kW
(2.2 hp)
Description
Tube specification (voltage / mAs): 50 - 90 kV / 0,4 – 20 mAs
Adjustment: 1 kV steps / mAs 25 steps
X-ray Tube: OX / 70 CEI
Focus: 1,2 x 1,2 mm
Collimator: LED collimator with high luminosity
Distance measurement: Dual Laser / tape measure
Operation: keybord, 7-segment LED display, rotatable, 15 freely programmable storage spaces for exposure values
Inverter system: 100 kHz Full-Bridge Inverter
Shutter release: two-area hand or foot release (remote control function for collimator light, kV, mAs)
Power supply: battery
Recording capacity in battery mode: approx. 560 images at 80 kv / 2 mAs
Weight approx.: 7,2 kg
Dimensions (L x W x H in cm): 30 x 16 x 17
Permanent filtration: 2,2 mm AI
