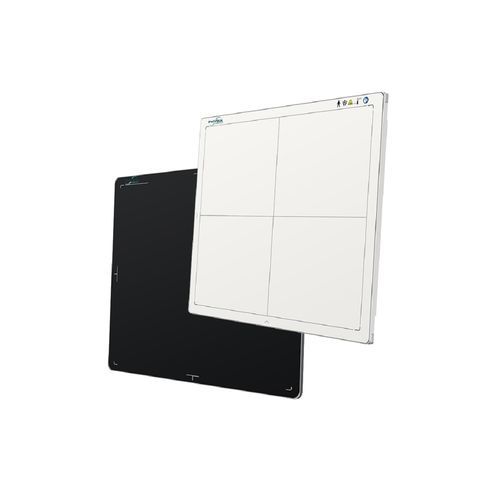

Veterinary radiography flat panel detector PHYDETECT CSI

portablewireless17 x 17

Internal image memory, up to 100 images Scintillator material caesiumiodid (CsI) for detailed images Csi 35: 2.304 x 2.800 Pixel, 150 μm pixel distance Csi 43: 3.072 x 3.072 Pixel, 139 μm pixel distance Connection via WLAN or Cable Transmission time 5 s Desktop PC according to the current specification, 19“ or 24“ TFT high-resolution touch screen Charging station 2 batteries Operating time approx. 4 hours or 200 recordings All-in-one acquisition and database software PHYvision for high image quality due to parameters specially adapted to veterinary medicine, extensive measurement package (HD, VHS, VD etc.), patient-CDs, export function of image data DICOM / JPEG, e-mail dispatch, etc. AED (Automatic Exposure Detection) DICOM standard Automatic shutter-software 60 months warranty on detector Exclusive PHYSIA® image algorithms for a variety of species and anatomical regions, thus immediately a good image result without time-consuming post-processing 12 months PHYSIA®- First-Level Support directly from the specialist in veterinary medical technology Optional components: DR-panel protection box with handle, light weight Horsemode Carrier bags for laptop and detector Transport case Full service contract
