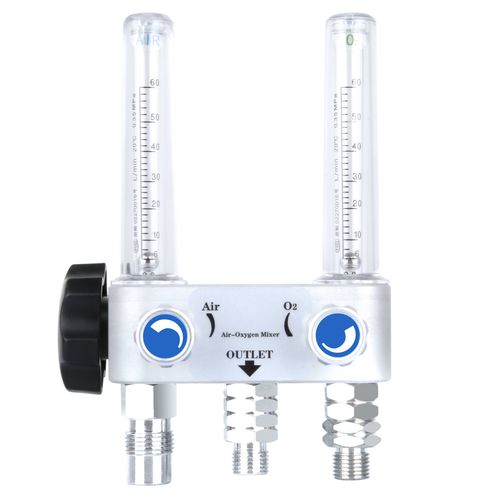

Medical gas blender AD3000-SPDF

oxygenairmechanical

Pigeon Medical air-oxygen blender is a device used by medical personnel to control the concentration and flow of oxygen for the rescue of patients with hypoxic problems while avoiding the side effects of pure oxygen inhalation. It provides the ability to mixed air and oxygen in a safe, easy, and controlled manner, supporting the use of a ventilator, HFNC machine, infant resuscitator, infant radiant warmer, CPAP, especially suitable for those who have high requirement for oxygen concentration. Working Principle of AD3000-SPDF Air Oxygen Blender It is also equipped with a previse balance device to output stable oxygen concentration from 21% to 100% optionally. The FiO2 can be controlled by adjusting the proportion of air and oxygen flow. Features of AD3000-SPDF Air Oxygen Blender Selection of flow meter from 0.1-6LPM/ 1-15LPM/ 6 to 60LPM each side Can match with humification bottle Adjust oxygen concentration level from 21% to 100% Specification of AD3000-SPDF Air Oxygen Blender Internal Filter (Air and Oxygen Inlet) - 80~100μm Oxygen Concentration Adjustment Range - 21% - 100% Accuracy of Oxygen Concentration - ±5% FS Gas Supply Pressure - 0.35±0.02 MPa（50±3 PSIG） Outlet Flow Range - 6 LPM (AT 21% Oxygen and 100% Oxygen) to 120 LPM (AT 60% Oxygen) Optimal Working Pressure - 0.35 MPa（50 PSIG） Maximum Allowable Pressure - 0.7 Mpa（100 PSIG） Temperature Range - 10~50℃ Ambient Storage Conditions Temperature Range - -20~60℃ Relative Humidity Range - 0 - 95% Non-Condensing Practical Application of AD3000-SPDF Air Oxygen Blender Bubble CPAP HFNC Ventilator gas supply Routine adult oxygen therapy Anesthesia Machine Incubator
