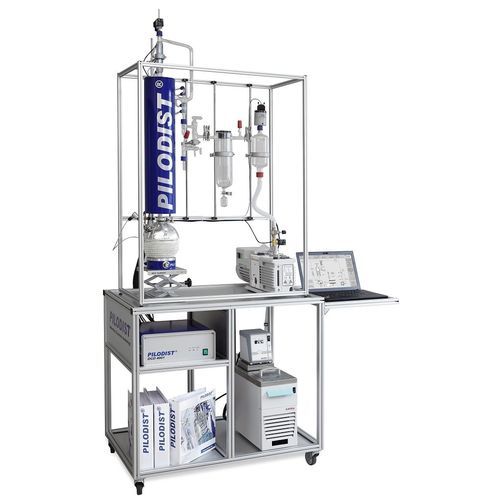

Semi-automatic micro-distillation system HRS 500 C

versatile

PILODIST® manufactures the world famous concentric-tube-column (CTC), an especially versatile distillation column with highest separation efficiency. The special advantages of the concentric-tube-column are: extremely low pressure drop highest separation efficiency minimum hold-up all-glass construction static design (no rotating parts inside the column) The separation efficiency in the concentric-tube-column is based on the physical principle of the mass transfer betwen vertically rising vapour and the spirally trickling film of liquid in a concentric annular gap made of glass. The column consists of two concentrically melted-in, especially selected and calibrated glass tubes. Technical Data Flask sizes - 50, 100, 250 ml Charge quantity - 10 – 150 ml Operating temperature 20° – 250° C Operating pressure atm … 0.1 mbar depending on vaccum access Separation efficiency up to 90 theoretical plates Mains Supply 208 – 260 V, 50 Hz (60 Hz upon request) Dimensions (w x h x d) approx. 1.20 x 1.40 x 0.50 m
