Laboratory evaporator FilmDist SP200pilotrotarythin-film
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, pilot
- Type
- rotary
- Other characteristics
- thin-film
Description

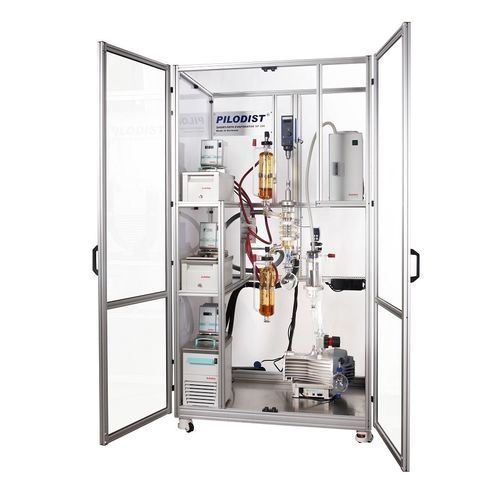

Universal lab-scale apparatus for short-path evaporation.
Rotary thin-film evaporator with thermostat mantle and internal condenser for continuous shortpath distillation or gentle concentration of thermally sensible products.
Suited for laboratory or pilot operation.
The pilot operation data and experimental values can be transferred to bigger systems.
The standard system uses glass wiper elements. Other wiper elements are available.
Mobile table to accommodate system and accessories can be ordered optionally.
Technical Data
Feed range 50 – 1000 ml / h
Evaporator material borosilicate glass
Feed-vessel 250 ml
evaporator - Product receivers 250 ml
evaporator - Evaporator surface 200 cm2, short path
Operating temperature max. 250°C
Operating pressure 0.001 – 1000 mbar
Mains Supply 208 – 250 V, 50 Hz (60 Hz upon request)
