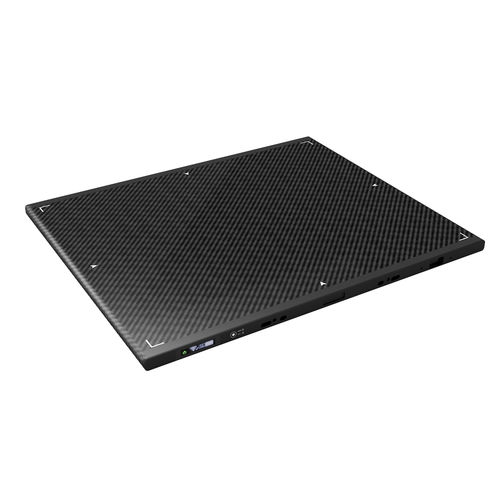

Multipurpose radiography flat panel detector PIXX 1417(M)

portablewireless14 x 17

High Image Quality - High SNR and Low Noise at lower dose Faster Image Acquisition - less than 3-5 second AEDP|U‘ - Second generation of continuous & accurate AED provides faster and efficient image acquisition Stand-alone Use - Without workstation, detector works with x-ray source in portable & mobile environment On-board Storage - Protect any data loss by saving up to 150 images on the detector Web Viewer for Mobile Phone Instant Viewer from any personal mobile devices One-piece Carbon Body - Full carbon fiber housing allows light and durable detector OLED Display for Status - OLED window helps user to check the status of detector Specifications Sensor a-Si TFT array Flat Panel Detector Conversion Screen Csl/GOS Pixel Size 140 um Spatial Resolution 3.6lp/mm Image Data 14bit/16bit Trigger Mode AED(Automatic Exposure Detection), Manual Trigger Calibration Mode ACC(Auto Calibration Control), Manual Calibration Data Transfer Time Less than 1 sec. Capture Cycle Time 3-5sec.approx. Wired Interface Gigabit Ethernet Voltage AC 100 - 240V, 50/60Hz I DC18V3.5A Wireless Standard IEEE 802.11ac Battery Type - Lithium Ion Polymer Battery Dimensions(W x L x T) 385mm x 460mm x 15mm Weight 2.4Kg(5.2lb), 2.8Kg(6.1lb. with battery)
