Research software PlexStim™

laboratoryfor controlacquisition

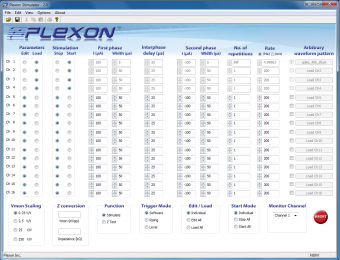

The PlexStim™ electrically isolated, individually programmable, 16 channel, constant current stimulator system is compatible with Plexon’s OmniPlex® data acquisition systems and/or the CinePlex® Behavioral Research System. PlexStim operating new software version 2.3 offers discerning researchers improved reliability, power scheme and electrical isolation over the previous system. Among other advancements, the new release also now enables the individual control of up to 64 independent stimulation channels (via four 16 channel devices) with the use of the new, accompanying PlexStim software development kit (SDK). Important: The new software v2.3 requires upgraded firmware to operate. in support of Plexon’s commitment to technical support, we ar offering FREE firmware upgrades. Contact support@plexon.com regarding the process to have your PlexStim Stimulators upgraded for FREE. PlexStim can generate arbitrary waveform patterns initiated from either the software interface or from externally triggered digital inputs with an unprecedented 30nA resolution and 1µsec temporal resolution. The specially designed Graphical User Interface (GUI) makes it easy to generate bi-phasic rectangular pulses and bursts of pulses repeated at specific rates. More complicated rectangular waveforms and non-rectangular arbitrary waveforms may be defined in and loaded from a simple text file.
