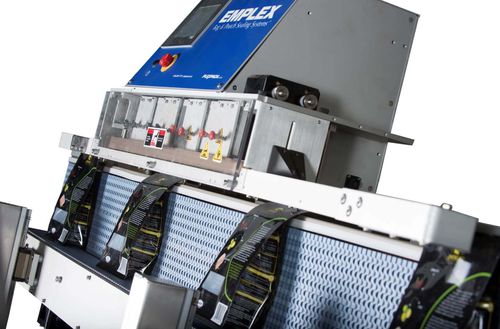

Medical packaging sealer ACS7300

continuouswith touchscreen

The validatable ACS Series delivers high speed sealing for horizonal and angled product handling applications. Multiple standard conveyor lengths and angle orientations, industry leading performance and flexible loading options meet the most demanding validatable bag sealing needs. You can configure infeed direction, sealer orientation, sealing width, and pressure roller type. The ACS is also available with vacuum/gas flush capabilities. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-touse industrial PC and 5.7” touchscreen display. Features & Construction Sealing Features Standard Sealer Orientation Angled or Horizontal Sealer Band Teflon Seal Throat Depth 2.75” (70 mm) Dimensions & Construction Standard Frame Construction 304 Stainless Steel frame and legs Infeed Direction Right to Left or Left to Right Angle Options 0 to 60 degrees Pressure Rollers - Stainless Steel Electrical 120V 12A Motor ¼ HP PWM PMDC SPL 60 db Conveyor - Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m) Standard width: 12” (30.48 cm) Controller - Industrial PC and 5.7” Color Touchscreen Interface Single-point setting for speed, temperature, and pressure. Recipe management and selection for different materials and products. Production and user activity reporting and management tools. Multi-Language preference settings. Diagnostics and background monitoring of key processes and components to prevent machine damage or product loss. Maintenance alerts. Pictorial maintenance guides and instructional tutorials.
