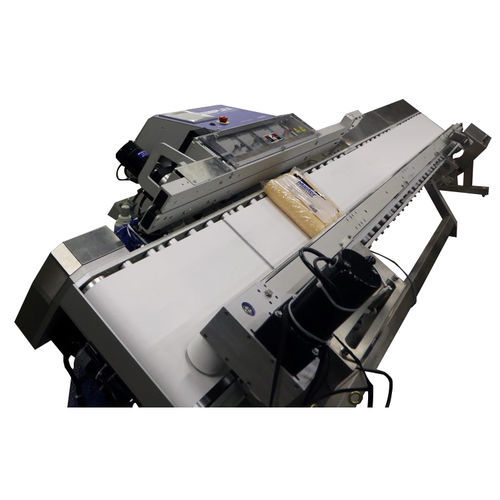

Semi-automatic sealer ACS6200

for medical packagingfloor-standingcontinuous

The Emplex ACS Series delivers high speed sealing for horizonal and angled product handling applications. The ACS6200 comes with 5 inches (12.7 cm) of heat and 5 inches (12.7 cm) of cooling. Sealing processes can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. The ACS seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). Common upgrades include inkjet printers, bag top trimmers, camera systems and robotic handling. Sealing Features Standard Sealer Orientation Angled or Horizontal Sealer Band Teflon Seal Throat Depth 2.75” (70 mm) Dimensions & Construction Standard Frame Construction 304 Stainless Steel frame and legs Infeed Direction Right to Left or Left to Right Angle Options 0 to 60 degrees Pressure Rollers - Stainless Steel Electrical 120v 12A Motor ¼ HP PWM PMDC SPL 60 db Controller Industrial PC and 5.7” Color Touchscreen Interface Single-point setting for speed, temperature, and pressure. Recipe management and selection for different materials and products. Production and user activity reporting and management tools. Multi-Language preference settings. Diagnostics and background monitoring of key processes and components to prevent machine damage or product loss. Maintenance alerts. Pictorial maintenance guides and instructional tutorials. Maintenance Standard Seal Band - Easy-access, tool-less changeover Cleaning - NEMA 4/4X Washdown capable
