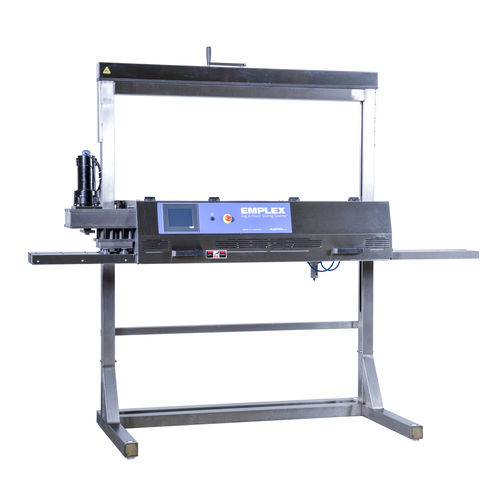

Semi-automatic sealer MPS14000

horizontalfor medical packagingcontinuous

Plexpack's MPS 14000 is a versatile high performance sealer that provides an ideal solution for a wide range of applications where high throughput and validatable sealing are priorities. The MPS 14000 provides high speed hermetic sealing on any type of heat sealable bag, up to 12 mil/300 micron thick (6 mil/150 micron maximum when gusseted). The sealing process can be adjusted to accommodate variations in material and bag style, ensuring reliable seal integrity on every bag. Features & Construction Sealing Features Standard Sealer Duty Continuous Sealer Orientation Vertical or Horizontal Sealer Band Teflon Seal Throat Depth 3.5” / 8.9 cm Dimensions & Construction Standard Frame Construction 304 Stainless Steel Frame and Legs Infeed Direction Right to Left or Right to Left Height Adjustment 25.25” -57.5” (645-1,457 mm) by crank Pressure Rollers - Stainless Steel Electrical 208-240V 1PH, 50/60Hz 13 A SPL 60 db Heating and Cooling Capacity 20” (50.8 cm) heating bars 15” (38.1 cm) air cooling Pressure Range - 0-5 bar (0-72.5 PSI) Contoller - Industrial PC and 5.7” Color Touchscreen Interface Single-point setting for speed, temperature, and pressure. Recipe management and selection for different materials and products. Production and user activity reporting and management tools. Multi-Language preference settings. Diagnostics and background monitoring of key processes and components to prevent machine damage or product loss. Maintenance alerts. Pictorial maintenance guides and instructional tutorials.
