Combined measurement of surface roughness and form deviation with the all-in-one optical 3D surface metrology
Combined measurement of surface roughness and form deviation

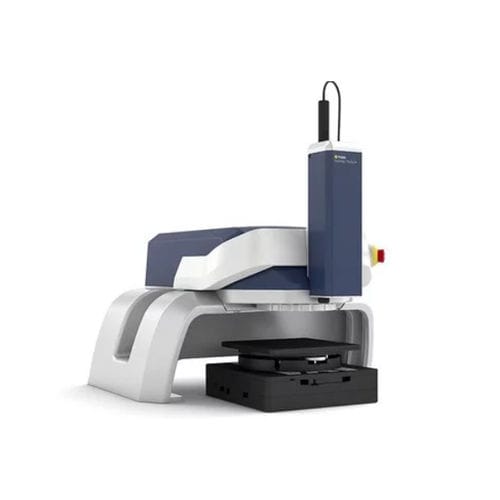

The TopMap Pro.Surf+ conveniently determines surface roughness and form deviation in a single measurement system – precise, reliable and cost-efficient. The additional roughness sensor and smart data acquisition takes the high-end surface measuring system TopMap Pro.Surf to the next level forming an all-in-one instrument. The resulting Pro.Surf+ is ideal for measuring precision surfaces – in the metrology laboratory, close to production and even right in the production line thanks to a high level of repeatability.
Highlights
Quick and precise 3D surface characterization, plus roughness measurement
All-in-one system captures all surface details
Non-contact measurement principle and traceable measurement results
Smart Scanning technology and filter wheel for almost all surfaces
Large measurement volume of 230 x 220 x 70 mm³
Telecentric lens measures even low-lying points
Safe sample handling thanks to a long stand-off distance
Automatic component recognition without any need for mechanical mounting
Easy-to-use and automatable measurement and analysis software
Measure surface roughness and form tolerances
The TopMap Pro.Surf+ offers the customized solution for all surface characterization requirements using parameters such as flatness, step heights, parallelism and roughness. All in all, the spatial resolution, the telecentric lens and the speed cut a very impressive figure indeed.
