Medical gas valve

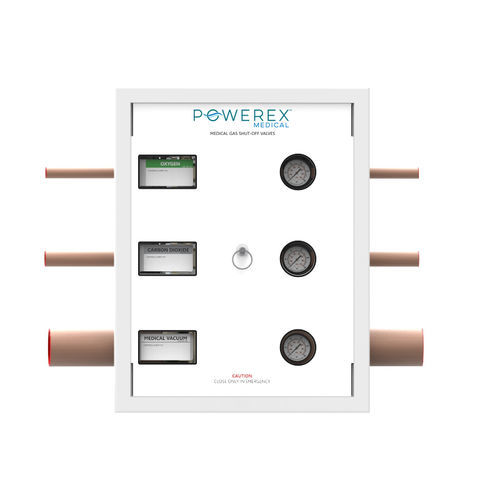

Powerex Zone Valve Boxes are configured vertically to maximize wall space and can include up to 7 ball valves per box. Valve sizes range from ½” to 3”. Powerex offers an optional sensing kit so the transducer can be remotely mounted in the box. It provides an easy-to-locate and test location for transducers, and a safe, fast method for backfeeding medical gases without shutting down the gas supply or disrupting patients. Forged brass, three-piece in-line repairable full port ball valves. Type K copper extensions and locking handles. Working pressure rating of 600 psi WOG (29in/Hg vacuum). Plastic insulators to prevent galvanic corrosion. Features Built by Powerex in Harrison, OH Improved, removable cover with transparent windows for gas label and gauges Now using US Valve ball valves with improved, easier-to-remove gauge port plugs Valves rigidly secured to the box via integrated bracket Dual ⅛” brass NPT ports on valves Improved rough-in box design New, compact design reduces box height by 25% Thin, beveled trim piece only ½” thick – reduces silhouette by 60% ½” thru 2″ valves in standard 4″ deep box 2-½” and 3″ single valve boxes in 6″ deep box Up to 7 valves per box Gas-neutral Gas label packet provided with each ZVB Simplifies part numbering Gauges provided separately Optional transducer sensing kit sold separately Simpler, more cost effective way to remotely mount tranducers Kit includes: 90° fitting DISS demand check fitting (gas specific) Terminal block with mounting screws and cover Note: transducer is included with alarm panel
