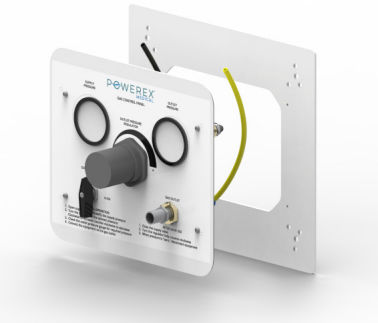

Pressure control unit GCPR series

flowfor medical gas plants

Durable, easy to clean type 304 stainless steel front. • Self relieving 0-250 psi pressure regulator. • High flow capacity. • Front Loaded (fast & easy to repair). • DISS Outlet. • High quality ball valve. • Easy to read 2” 0-300 psi gauges. • Easy to install • Outletsupply tube facilitates piping to additional remote outlets. Specifications All gas control panel retrofit kits mus be installed and tested in strict accordance with NFPA 99 standards and or other local codes before use. Powerex nitrogen control panel conversion kits are designed to update or retrofit existing panels by several major brands. The conversion kit replaces all fo the major components (vavle, regulator, gauges, outlet , stainless steeel cover plate and all connecting tubing & fittings), utilizing the existing back box and riser tubes. The gas panel retrofit kit shall include a high flow self-relieving pressure regulator capable of providing pressures up to 250 psi. A quarter turn brass, ball type valve shall be used to supply pressure to the regulator. Two 0-300 psi 2” diameter pressure gauges shall be provided to monitor both supply and outlet pressure. Panel shall also include a front loaded CGA DISS 1120 gas outlet. The gas control panel shall be factory piped and 100% tested. All components shall be panel mounted on a stainless steel, silk-screened front panel. NFPA – (National Fire Protection Association Pamphlet 99” Health Care Facilities”) compliant. CGA – (Compressed Gas Association Pamphlet V-5 “Diameter Index Safety System”) compliant.
