Butterfly valve PX-53 series

medical gasmanual

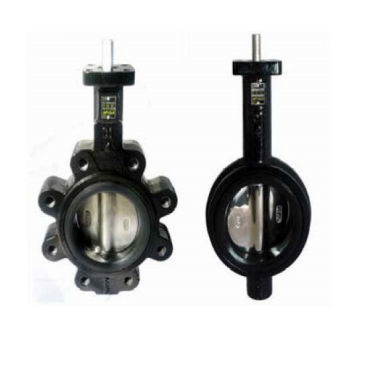

The Powerex 53-xxL (lug) and 53-xxW (wafer) Series Ductile Iron Butterfly Valves are ideal for use in Industrial and HVAC/Mechanical applications. Features • Sizes 2” through 6”. • Compatible with ANSI 125# & 150# Flanges. • ISO 5211 Top Plate Allows Choice of Apollo® Pneumatic Actuators and manual operators. • Optional square drive shaft for direct mounting actuators (2”-6”). • Conforms to MSS SP-67 & API 609. • 53-XXL (lug) Series Suitable for End of Line Service to Rated Pressure. • 3” -6” meet performance requirements of AWWA C-504. • Pressure rating – 200 psig. Standard Materials Body Ductile Iron ASTM A536 Bushings PTFE Stem Seal Buna-N Shaft 416 SS ASTM A276 Type 416 Materials Body Ductile Iron ASTM A536, (65-45-12) Disc Material Aluminum Bronze Seat Material BUNA-N: +10°F to +180°F Operator 10 Position Handle
