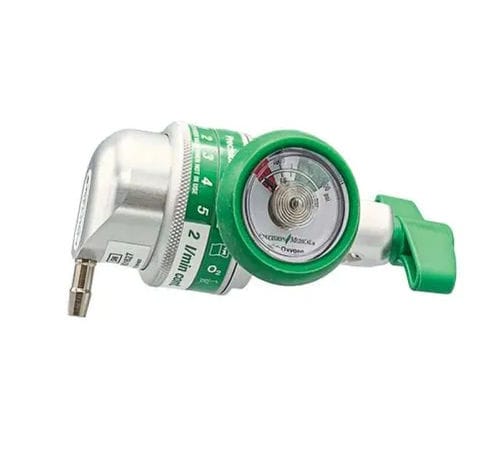

EasyPulse5 Oxygen Conserving Regulator is the smallest and lightest oxygen conserver available weighing 10 oz. A single dial control and ergonomically designed T-Handle/Hand Tight Nut make setting and connecting EasyPulse5 simple for any user.
With a conserving ratio of up to 5.7 to 1, EasyPulse5 reduces wasted oxygen and increases time away from home. Its proven reliability, easy to use design and no need for batteries, makes EasyPulse5 the right choice.
EasyPulse5 is available in CGA 870 Post Valve and CGA 540 Nut Style cylinder connections and has a 2 year warranty.
Dimensions
for 198705 Models
Height: 2.5 in (6.4 cm)
Width 2.6 in (6.8 cm)
Depth: 4.8 in (12.1 cm)
Weight: 9.9 oz (280 g)
Dimensions
for 195405 Models
Height: 2.9 in (7.5 cm)
Width 1.9 in (4.9 cm)
Depth: 2.5 in (6.4 cm)
Weight: 12.6 oz (360 g)
Inlet Pressure Range
300-3000 psig
Internal Regulated Pressure
50 psig
Altitude
Sea level to 10,000 ft
(3,048 m) above sea level
Savings Ratio
Up to 5.7 : 1
Cannula Requirements
Maximum 7 ft long adult standard single lumen oxygen nasal cannula
