Fluorescence microplate OxoPlate OP96C

laboratory96-well

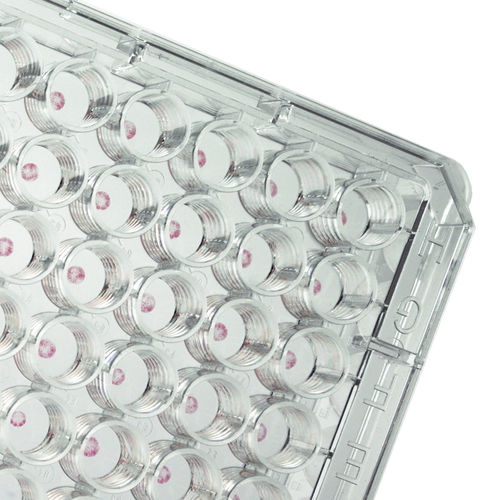

The OxoPlate OP96C is a beta-irradiated 96-well flat bottom microplate made of polystyrene. An oxygen sensor is integrated on the bottom of each well. The sensors can be read out in parallel from the bottom side using a commercially available fluorescence reader. Ready-to-use User-defined batch calibration For use with conventional microplate fluorescence readers High throughput screening Measurement range - 0 - 30 % O2 Resolution - ± 0.2 % O2at 0.21 % O2 ±0.6 % O2 at 20.9 % O2 Precision - ± 0.4 % O2 at 0.21 % O2 ± 1.0 % O2 at 20.9 % O2 Drift - < 0.04 % O2 per hour (sampling interval 1 min.) Measurement temperature range - from + 15 °C to + 45 °C Response time (t90) - at + 25 °C: < 30 sec. Properties Compatibility - Aqueous solutions, ethanol (max . 10 % v/v), methanol (max. 10 % v/v), pH 2 – 10, 20 % (v/v) DSMO, DMF, acetone, THF, or dioxane in solution. (Calibration constants have to be determined using the respective solvent instead of water.) Cross sensitivity - Gaseous sulfur dioxide (SO2) and gaseous chlorine (Cl2); Changes in ionic strength Calibration - Needs to be calibrated once per batch Disposables are delivered beta-irradiated Plate type - 96-well flat bottom plates (Greiner Microlon® 600) Maximum filling volume - 400 µL Indicator filters - 540 nm / 650 nm Reference filters - 540 nm / 590 nm
