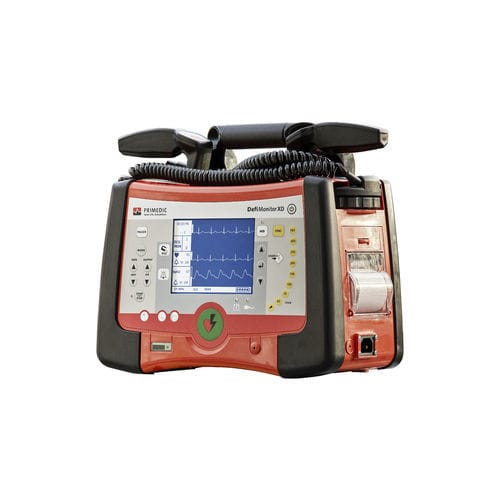

Automated external defibrillator DefiMonitor XD

with ECG and SpO2 monitor

The DefiMonitor XD combines a compact and proven design with an intuitive operating concept into a multifunctional solution for emergencies. The specially developed mounting and charging concept enables the DefiMonitor XD to be used in a wide range of applications - in the practice, in the clinic, in emergency medicine. Its simple handling makes it the ideal companion for professional users all over the world, even in extreme situations. manuel defibrillation SpO2 external pacemaker 6 - Lead ECG AED-Mode Printer Defibrillator / Monitor with illuminated LCD-monitor, 95 x 72 mm (5,7") Hardpaddles for adult and pediatric (pediatric size integrated), alternatively the use of adhesive pads / multifunction electrodes (SavePads Connect) possible 6-lead-ECG with free choice of leads (I, II, III, aVR, aVL, aVF) and synchronous display of two curves on the monitor Alarm limits (adjustable) for monitoring Energy up to 360 J (biphasic) Energy levels: 2-5-7-10-20-30-50-70-100-150-200-250-300-360 Joule Direct and synchronous (cardioversion) energy delivery External, transthoracic pacemaker Integrated printer for the documentation of curves, vital signs, events; manual and automatic printing SpO2-measurement with Nellcor technology Metronome for the correct pressure frequency during CPR in AED mode Automated adjustment of the energy delivered to each patient with escalating energy delivery up to 360 J in the event of multiple defibrillation (in AED-mode) Automatic daily self-tests with status display for function and battery Documentation of the application data on a removable memory card
