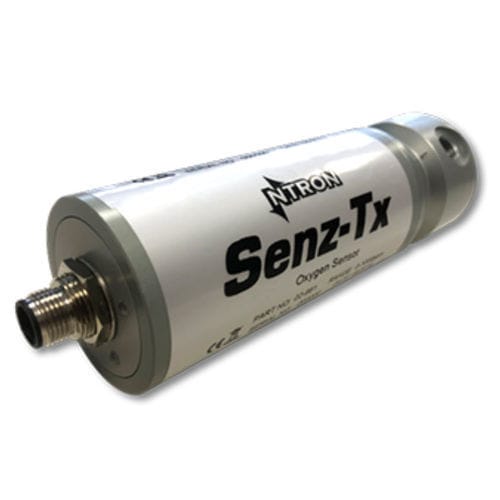

Oxygen tester SenzTx

for medical devicescompact

For O2 Monitoring in Gas Generators and Glove Boxes Zirconia or electrochemical sensor technology options Measurement range: 0 to 100ppm up to 0 to 100% O2 RS 485 modbus protocol 24VDC power supply KF40 Flange, Flowthrough and Flow Orifice process connection options available Combined Sensor & Electronics allows for ease of integration Lightweight and robust (< 0.3Kgs) The SenzTx is a compact and robust O2 transmitter that utilises zirconia or electrochemical technology to give a reliable measurement of oxygen concentration. The zirconia sensor offers fast response time and a long service life with virtually no drift, whilst the electrochemical sensor allows measurement in background gases containing hydrocarbons. The minimum output range of 0 to 10ppm is ideal for nitrogen generation or glove box monitoring. The SenzTx transmitter can also be supplied with measuring ranges up to 0 to 96% O2 for oxygen concentrators. The flexibility is further enhanced by process connection multiple output options.
