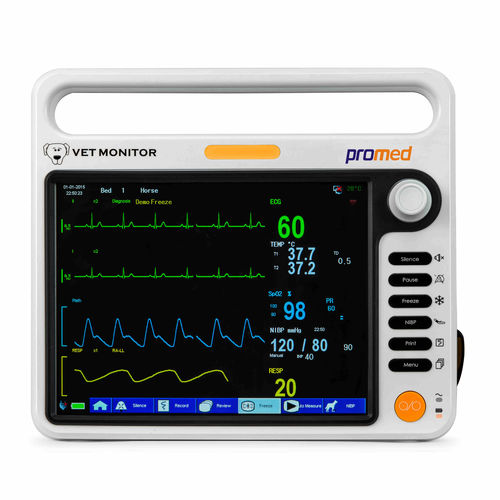

Portable patient monitor PM-12B

ECGRESPSpO2

Configurations: Touch + ECG + SPO2 + HKNIBP + Temp + EtCo2 port Optional : 2IBP module, printer, EtCO2 mainstream module Standard Accessories: 1)1 pc 5 Leads ECG cable with vet clap 2) 1 pc ear clip SPO2 sensor 3) 1 pc NIBP tube 4) 1 set of disposable NIBP cuff size 1 to 5 ; 5) 1 pc rectal temp probe   II.1  Type Standard anti-shock class       : class I EMC type:                        class A  Standard anti-shock level                     CF level for ECG(RESP):　type BF for SpO2,NIBP; TEMP Anti-entering fluid level: common seal apparatus, does not have the function to prevent liquid entering Disinfection / sterilization methods:      details as per chapter 5 Working method:   Continuous II.2  Specification II.2.1  Working condition TEMP range         working             　　  0 ～ 40 °C            transportation and storage     -20 ～ 60 °C            Humidity         working                　　      ≤85 %                transportation and storage    ≤93%         Altitude Range         working                          -500 － 4,600m(-1,600 － 15,000feet)                transportation and storage     -500 － 13,100m(-1,600 － 43,000feet) Electric specification           100～250 VAC, 50/60 Hz, Maximum 70VA       Fuss: T3.15A of displayer 15”     II.2.2  Displaying Info                               Maximum 6 waveforms                             One alarm light （yellow/red）                             One working indictor（green）                             One battery charging indictor（yellow）                             Three corresponding sound alarming mode
