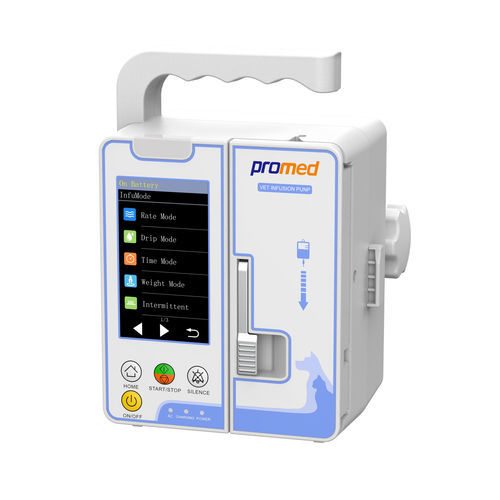

1-channel infusion pump IP-200C VET

veterinaryfor animal researchfor animals

Simplified • Small and light, easy to carry • 3.5 TOUCH screen, easy to learn interface, short learning curve Safe • More than 30000 history records. • Automatic screen lock ensures the patient privacy, and reduces operating mistakes. • Automatic identification of drop sensor to improve infusion safety • Ingress protection by IP24 Smart • Wireless technology allows for connection to infusion monitoring system which features complete interoperability with HIS and CIS. • 6 infusion modes fully meet the needs from various clinical departments and special drugs. Infusion Mode - Rate Mode, Drip Mode, Time Mode, Weight Mode,Intermittent Mode, Drug library Applicable infusion set - Various brands of standard infusion sets Accuracy - <±5% Drip rate - (l~400)d/min, increment atld/min VTBI - (0.00~99999.99)ml, increment at 0.01ml Volume infused - (0.00~99999.99)ml KVO rate - (0.10~10.00)ml/h, increment at 0.01ml/ h BOLUS rate - (0.10~2001.00)ml/h, increment at O.Olml/h Bolus VTBI - (0.00~100.00)ml, increment at 0.01ml Purge rate - (0.10~2001.00)ml/h, increment at O.Olml/h Bubble detection - 6 levels (25ul~800ul) Occlusion pressure - 13 levels (10-160) kPa History record - 30000 Alarm - Use battery, Door open, Occlusion, Almost done, No operation, Infusion completion, Low Battery, Battery exhausted, Malfunction etc Features Anti-Bolus, Drug library, Anti-reverse detection, Double CUP, Touch screen, Screen lock Screen brightness adjustable, Key blacklight adjustable, Bolus, Dedicated tube Optional functions Nurse call, WIFI, Heating, Drop sensor Night mode - Available, Screen brightness adjustable
