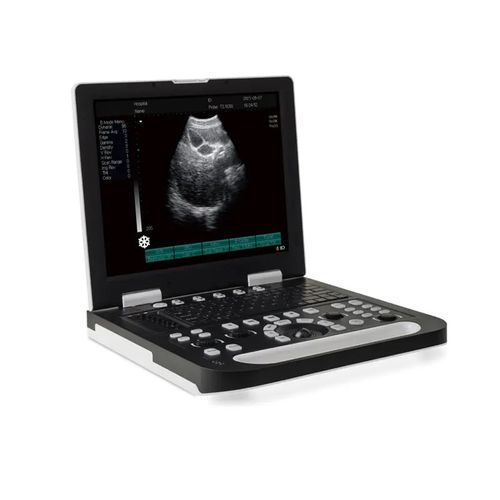

Portable ultrasound system DP-50 Plus
for multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imaging

portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
portable ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
portable
Application
for multipurpose ultrasound imaging, for gynecological and obstetric ultrasound imaging, for abdominal and pelvic ultrasound imaging, for urology ultrasound imaging, for endovaginal ultrasound imaging, for transrectal ultrasound imaging
Imaging modes
B/W
Options
built-in console
Probe type
convex-array, linear-array
Screen size
15-inch

Description

1. Display: 15inch LED screen; 2. Probe Interface: Dual probe interface, with automatic identification function 3. Battery Capacity: removable lithium battery /6000mAh 4. Display mode: B, B + B, 4b, B + m, m; 5. Four encoders, knob design, quick and convenient operation 6. Simple operation interface, easy to understand, ready to use 7. Movie playback: 256 frames, can be played back frame by frame and pause playback, pause playback can be used for image preservation and measurement 8. Language: Chinese/English 9. Electron focusing: four stage electron focusing; 10. There were more than 18 body position markers; 11. Frequency conversion: All probes support five-stage frequency conversion; 12. Image mirror: upper and lower mirror, left and right mirror, black and white flip; 13. Measurement: Professional software measurement package; 14. Character display: date, clock, name, gender, age, doctor, hospital, comment (full-screen character editing); 15. Gain range: 0-135db; 16. Interface: video interface, two USB interface, DICOM interface, VGA interface, power interface 17. Permanent storage: 16G built-in storage, can also be connected to external U disk storage 18. Grey scale: level 256 19. Dynamic range: 0-135db; 20. With the function of puncture guidance, puncture line position can be adjusted 21. With the function of rock positioning and dynamic target tracking 22. Front process: variable aperture, dynamic trace change, dynamic digital filtering, etc
