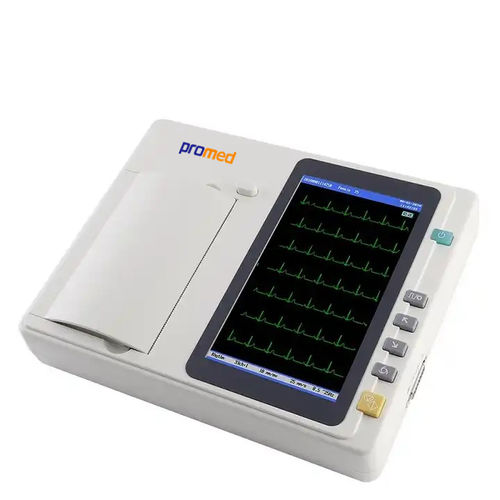

Resting electrocardiograph T6 plus

6-channeldigitalwith printer

7 inch color touch screen and keyboard (patient name, age, gender...) External card to expand the memory to 10,000 cases Automatic analysis and automatic evaluation Internal rechargeable lithium ion battery Paper speed: Automatic & manual recording: 6.25, 12.5, 25, 50mm/s, Error: ±5% USB interface (standard), LAN socket (option) Built in memory with large capacity, can store more than 1000 cases Optional PC software for data transfer (save, review, print a report) Re analysis and display of 12 leads Analysis elements for FCG, HFCG, QTD and HRV Multiple languages The device is supplied with a carrying case Technical Specification: Lead: Standard 12 leads;  Input circuit: protection against defibrillator; Acquisition Mode: Simultaneous 12 leads acquisition and asynchronous acquisition;  Measurement Range:  ±5mVpp;  Time Constant:  ≥3.2s;  Frequency Response:  0.05Hz~150Hz (-3dB);    Sensitivity:  2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV;  Input Impedance:  ≥50MΩ;  Input Circuit Current ＜0.05µA;  Noise Level ＜15µVp-p;  Patient Current Leakage ＜10µA (220V-240V);    Filter:  EMG Filter:  25 Hz / 30 Hz / 40Hz Low Pass Filter: 75 Hz / 100 Hz / 150Hz DFT Filter:  0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS AC Filter:  50 Hz / 60Hz CMRR:  100dB; Recording Mode:  Automatic:  3CH×4+1R, 3CH×4,6CH×2 Manual:    4CH, 3CH, 2CH, 1CH, 6CH Rhythm:   Any lead selectable Recording System:   Thermal matrix printing;  Recording Paper: Roll 110mmx20M;  Paper Speed:  6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s; Interface:  Network interface, USB Master/Slave, SD card; Safety Standard:  IEC I/CF;    Sample Rate Normal: 1000sps/channel
