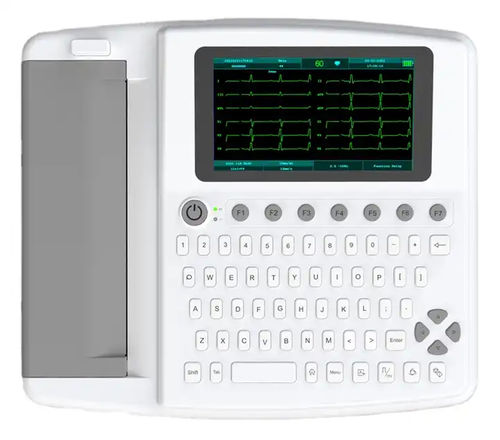

Resting electrocardiograph T12C

12-channeldigitalwith printer

Features advanced technology, high functionality, ease of use and unbeatable value for money. Reliable, interpretable touch screen ECG. It features a large 7” TFT LCD touch screen. Supports USB flash drive, one have fantastic keypad for easy to use and easy type patient data High resolution color screen Full alphanumeric keyboard with shortcut keys, efficient in operation Simultaneous acquisition and display of 12 ECG leads Automatic ECG measurement and interpretation Internal memory for up to 1000 cases, convenient for case reviews and statistics Built in high capacity rechargeable lithium battery ECG data can be transferred via USB to PC ECG reports can be saved and opened via ECG replay software on PC Optional PC software for data transfer (save, review, print a report) Technical specification: Leads: Standard 12 Leads Patient leakage current: 3.2s CMRR: ＞60dB EMG noise filter: 25/35Hz(-3dB) Recording method: thermal array printing system Recording paper specification: Paper speed: Automatic recording: 25mm/s 50mm/s Rhythmic recording: 25mm/s 50mm/s Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Sensitivity selection: 2.55102040mm/mV 5 options. Default is 10mm/mV±0.2mm/mV. Automatic recording: set up recording according to recording format and automatic mode with automatic change of line measurement and analysis. Manual recording: set up recording according to recording format with manual change of measurement lines.
