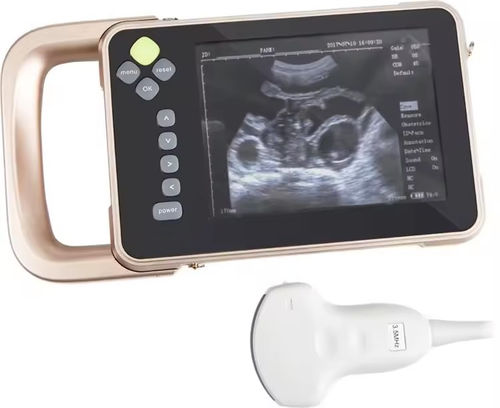

Hand-held veterinary ultrasound system V5

multipurposefor small animalsfor large animals

-7 inch TFT screen -Pretty and very light -Full digital imaging technology, crystal-clear Image -Low power consumption -2G Large volume storage image  -Built-in battery -Solid shell and structure      -Waterproof  -High Cost-effective Specifications: Display size: 7 inch TFT Scanning manner: Electronic convex array, electronic linear array Working frequency: 2.0MHz~10MHz Display mode: B, B+B, B+M, M, 4B Scanning range: Convex array 60°~150° Amplification factor:1.0, 1.2, 1.5,2.0 Gain control: 8 segments TGC and overall gain can be adjusted respectively Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc Image gray-scale: 256 levels  Scanning line number: 512 lines/frame Frame rate: 30 frames/second Digital scanning conversion: 512×512×8 bits Memory capacity: ≥2GB Conventional measurements: distance, perimeter, area, volume Obstetric measurement: horses, cattle, sheep, dogs, cats obstetric measurement Report function: auto make report Battery capacity: 3000mAH/7.4V,can work more than 2 hours Display screen: 7" TFT Output interface: USB port, video. Overall size: 216mm×147mm×27mm Total weight: 950g(with battery) Waterproof: IP65(optional) Standard Configuration:  Host, convex probe, built-in battery, power adapter, bag. Optional: Linear probe, Micro-convex probe, Rectal probe .
