Product Feature
Battery status indicator.
Low power inspection of the battery.
Built-in speaker.
Output for headphones.
The probe can be changeable.
Probe inspection.
Backlight.
Auto shut off.
Two pieces of standard 1.5v alkaline available which can work no less than 10 hours.
Technical parameters
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B applied part
Power Consumption: < 0.8 W
Voltage: DC 3.0 V
Power Supply:TWO 1.5V(AA size)alkaline battery
Suitable Using Range: Suitable for use after the 12th week of pregnancy
Ultrasound Output Power: P < 10 mW
Ultrasonic Output Intensity: Isata < 5 mW/cm2
Working Mode: Continuous wave doppler
Effective Radiating Area of Transducer: 208 mm2plusmn15%
Physical Characteristic
Dimension:(L)135mm times (W)95mm times (H )35mm

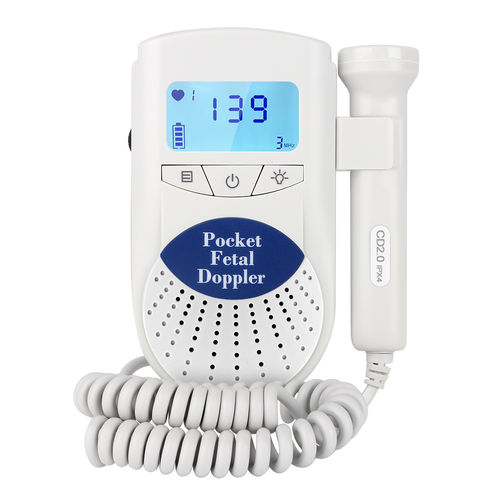

(1)Product name:Angel Sound C
(2)Safety: Complies with IEC60601-1: 1988+A1:1991+A2:1995
(3)FHR measuring range: 50~240BPM (beat per minute)
(4)Resolution: 1 BPM
(5)Accuracy: +/- 2BPM
(6)Power supply: 2* AA batteries (not included)
(7)Display:45mmx25mmLCD display
(8)Working temperature: 5C~40C
(9)Working humidity:=80%
(10)Atmospheric pressure:50kPa~106kPa
(11)Storage temperature: -10C~55C
(12)Storage humidity: =93%
Packaging & Shipping
1 x Fetal Doppler
1 x English manual
1XHeadphone cable
Carton Size:59*36*58; 60PCS
Gross Weight:16KG
