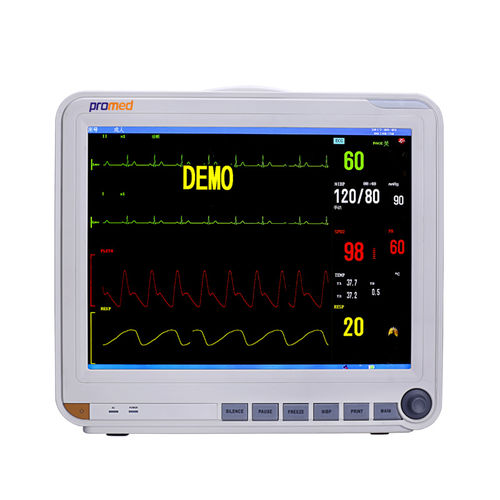

Portable patient monitor PM-15

ECGRESPSpO2

Color TFT LCD display. Thinner and lighter in design, convenient and portable for users. Real-time S-T segment analysis, pacemaker detection. Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife. Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. Built-in rechargeable lithium battery. Wireless central monitoring system applicable to ICU/CCU/OR Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer Package Include: 1 x Main Unit 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) 1 x Blood pressure cuff (for NIBP) 1 x ECG cable (for ECG, RESP) 1 x Temperature probe (for Temperature) Technical Specification: ECG -   Input - 3/5 wire ECG cable Lead section - I II III aVR, aVL, aVF, V Gain selection - *0.25, *0.5, *1, *2,Auto Sweep speed - 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s Heart rate range - 15-30bpm Calibration - ±1mv Accuracy - ±1bpm or ±1% (select the bigger data) NIBP -   Test method - Oscillometer Philosophy - Adult, Pediatric and Neonate Measurement type - Systolic Diastolic Mean Measurement parameter - Automatic, Continuous measurement Measurement method Manual - mmHg or ±2%
