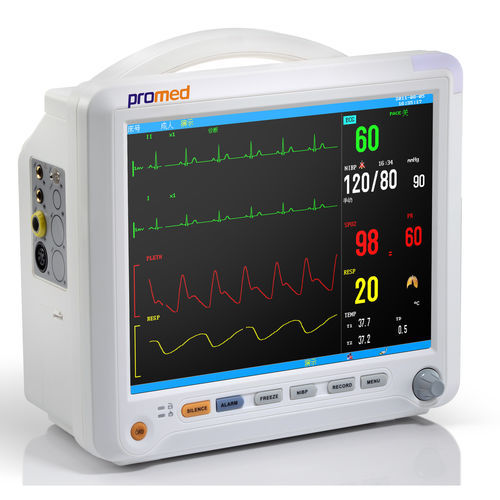

Tabletop patient monitor PM-8

RESPetCO2intensive care

Color TFT LCD display. Technical Specification: ECG -   Input - 3/5 wire ECG cable Lead section - I II III aVR, aVL, aVF, V Gain selection - *0.25, *0.5, *1, *2，Auto Sweep speed - 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s Heart rate range - 15-30bpm Calibration - ±1mv Accuracy - ±1bpm or ±1% (select the bigger data) NIBP -   Test method - Oscillometer Philosophy - Adult, Pediatric and Neonate Measurement type - Systolic Diastolic Mean Measurement parameter - Automatic, Continuous measurement Measurement method Manual - mmHg or ±2% SPO2 -   Display Type - Waveform, Data Measurement range - 0-100% Accuracy - ±2% (between 70%-100%) Pulse rate range - 20-300bpm Accuracy - ±1bpm or ±2% (select the bigger data) Resolution - 1bpm 2-Temperature (Rectal & Surface) -   Number of channels - 2 channels Measurement range - 0-50℃ Accuracy - ±0.1℃ Display - T1, T2 Unit - ºC/ºF selection Refresh cycle - 1s-2s Respiration (Impedance & Nasal Tube) -   Measurement type - 0-150rpm Accuracy - ±1bm or ±5%, select the bigger data Resolution - 1rpm
