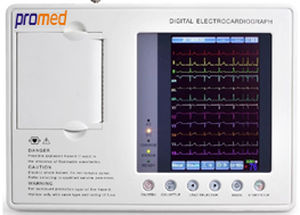

Resting electrocardiograph ECG-103B

3-channeldigitalwith printer

12-lead ECG simultaneous acquisition Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes 80mm 3-channel recording with a rhythm lead Digital filters eliminate EMG, AC, Baseline Drift interference Built in rechargeable Li-Ion battery, 3 hours continuous working  Adapt 110-240V, 50/60Hz AC power supply 250 patients save/replay       Specification:   Lead - 12 leads, Standard or Cabrera, 12 leads simultaneously acquisition Input circuit - Floating LCD display - 480*680  7inch color screen LCD display ECG waveform, operation conditions, Time, Heart-rate Safety - IEC class I, type CF Sampling rate - 1000 samples/Sec/Channel A/D converter - 12 bits Recording Mode - automatic, manual, Long Term(60Sec) Filter - AC (50Hz or 60Hz, -20dB) EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) Drift (0.5Hz,-3dB) CMRR - > 80dB and 100dB (AC filter in use) Input circuit current - 3.2S Frequency Response - 0.05--150Hz,-3dB Noise Level - <15µV Paper size - 80mm/20m roll type Case storage - 150 cases at least, can be stored on external SD card Power requirements - AC220V/50Hz Built-in battery - Li-ion rechargeable battery pack, 11.1V Fuse Specification - 2Φ5x20mm Patient Cable - standard 10 leads Patient ID input - No Dimension - 285(W)*200(D)*50mm(H)   11.2" x 7.87"x 2.06" (inch) Net weight - 2.0 kg (4.41 lb) Gross weight - 3.6 kg  (8.08 lb) Package: ECG Main Unit - 1 set Patient Cable - 1 set Limb Electrodes - 4 pcs/set Chest Electrodes - 6 pcs/set Power Cable - 1 piece Grounding Cable - 1 piece Printing Paper - 1 roll Operation Manual - 1 copy
