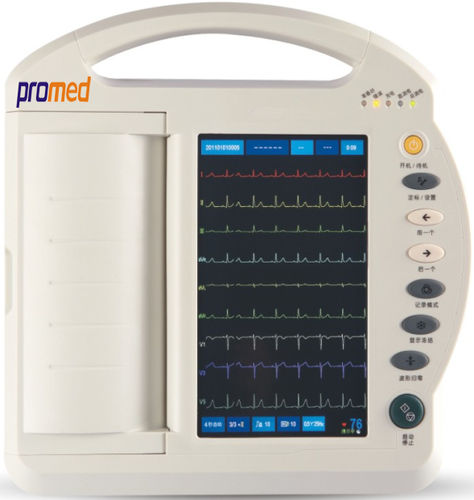

Resting electrocardiograph ECG-T12

12-channeldigitalwith printer

•12-lead ECG signal simultaneous acquisition, changeable acquisition order •Color LCD display, Touch screen control panel quick and simple, save time and energy • High speed and high sensitivity hot spot recording system; •Record paper 216mm wide, completely record 12-channel nocompression electrocardiograph waveform lead marks filter state information •High-capacity case storage,   •Electrode bad connection indication, electrode fall-off warning, ead electrode individual indication •AC/DC available, wide voltage range 110-230V, 50/60Hz AC power supply •VI, V2, V5 chest lead experience modes, suitable for mass expense •Optional: electrode for children Specification 10.1 inch touchscreen ECG machine Specification LCD display - Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously, Time, Heart-rate. ect, Support patient name, Age, Sex and Hospital name input(Optional) Safety - IEC, Class I, type CF Leads - 12 STANDARD or CABRERA leads Input circuit - Floating, Defibrillation protection Print Channels - 12 channels, Rhythem lead selectable Thermal paper - 216mm*20M thermal paper in rolls Package: ECG Main Unit - 1 set Patient Cable - 1 set Limb Electrodes - 4 pcs/set Chest Electrodes - 6 pcs/set Power Cable - 1 piece Grounding Cable - 1 piece Printing Paper - 1 roll Operation Manual - 1 copy
