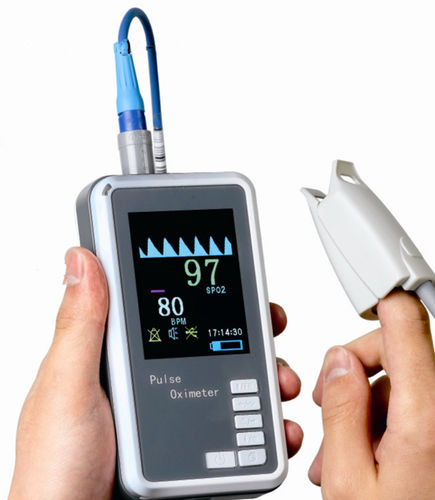

Fingertip pulse oximeter H2

hand-heldwith separate sensor

1. Three parameters:SPO2, Pulse Rate, and TEMP 2. Spo2 waveform(PLETH),PR strength display 3. 2.8inch color TFT LCD in real time display, displayable in big font and big screen 4. Unique software for telemonitoring by transmitting data synchronously via Internet 5. Long time monitoring and sleeping monitoring 6. Storage/Review trend data up to 3888 groups, data save time interval settable 7. Via USB to upload history data to PC for review, printing or storage 8. Audio and visual alarm when parameters exceeded and sensor-off 9. Common AA alkaline batteries to support 6 continuous working hours 10. Battery capacity indicator. Automatic shutdown for power saving 11. AC Power is OK Technical Specifications 1. General Monitoring Parameters: SpO2,PR,PLETH,Pulse strength,TEMP Signal sockets:SpO2 socket,PR socket,TEMP socket,USB socket(for transmit data and AC power) 2. Display screen             Type: 240 × 320 dot matrix color TFT LCD screen Display area: 43mm×58mm 3. Functions PLETH: The oximeter can display PLETH waveform Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off. Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch. Power saving: The oximeter will automatically shut down to save power. The time is settable.  Trend: Storage/Review trend data up to 3888 groups, data save time being set freely Data storage: The saved data will never be lost even if the oximeter is powered off. Communication: Transmitting the patient’s trend to a PC for display, observation, saving and printing via USB or Bluetooth communication
