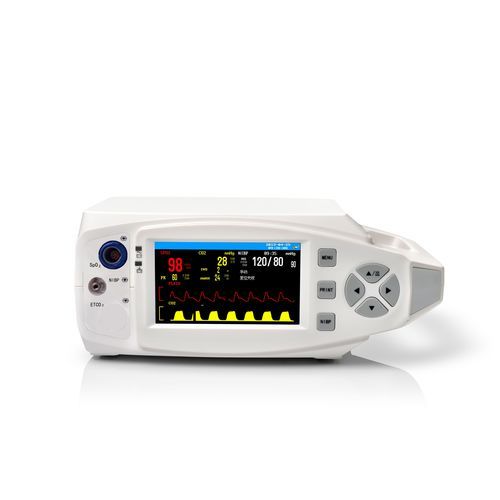

Handheld patient monitor PM-2 series

ECGRESPNIBP

Material - Acrylic, metal, plastic Color - white Size - 255mm*152mm*100mm   Feature - Standard Configuration: SpO2, PR/HR, Options: NIBP, ETCO2, Nellcor Spo2, Suntech NIBP, touch screen, trolley, wall mount Display size - color TFT screen Thinner and lighter in design, convenient and portable for users. Real-time S-T segment analysis, pacemaker detection. Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife. Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. Built-in rechargeable lithium battery, 2-hour working capability. Wireless central monitoring system applicable to ICU/CCU/OR Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery Package Include: 1 x device 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) Specification NIBP - Test method - Oscillometer Philosophy - Adult, Pediatric and Neonate Measurement type - Systolic Diastolic Mean Measurement parameter - Automatic, Continuous measurement Measurement method Manual - mmHg or ±2% SPO2 - Display Type - Waveform, Data Measurement range - 0-100% Accuracy - ±2% (between 70%-100%) Accuracy - ±1bpm or ±2% (select the bigger data) Resolution - 1bpm
