- Hand-held ultrasound system
- Promed Technology

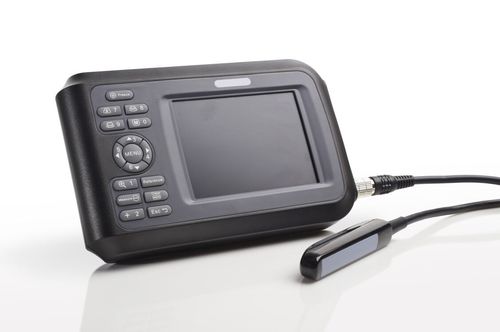

Hand-held ultrasound system DP-20Afor multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor cardiovascular ultrasound imaging
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Application
- for multipurpose ultrasound imaging, for gynecological and obstetric ultrasound imaging, for urology ultrasound imaging, for cardiovascular ultrasound imaging, for endovaginal ultrasound imaging, for transrectal ultrasound imaging
- Imaging modes
- B/W
- Probe type
- linear-array, microconvex-array
- Screen size
- 5-inch
- Probe frequency
Max.: 7.5 MHz
Min.: 2.5 MHz
Description
Display Modes: B, 2B, 4B, M, B+M
Comments: date & time, name, sex, age, hospital
Scanning Depth: 70mm - 220mm
Gray Scales: 256 levels
Cine Loop: ³ 400 frames
Battery working: ³3 hours
Weight: 700g
Image Reservation: UP/Down, left/ right
Dimensions: 230mm*120mm*42mm
Monitor: 5.5inch TFT LCD color screen
Body markers: A variety of body markers (40 sorts)
Measurement: rate, time
Port: VIDEO (PALD, NTSC), USB2.0Image Conversion: distance, circumference, area, volume, EF rate, heart
Image Storage: Built-in memory 64 images, USB disk storage
OB measurement: BPD, GS, CRL, FL, HC, AC, EDD, GA, FW
Accessories
Standard:
Multi frequency convex probe ...... 1Pcs
Hard Case ................................... 1Pcs
Silicon Case ............................. 1Pcs
Power Adapter .......................... 1Pcs
Chargable Battery ....................... 1Pcs
Cleaning Cloth ............................ 1Pcs
