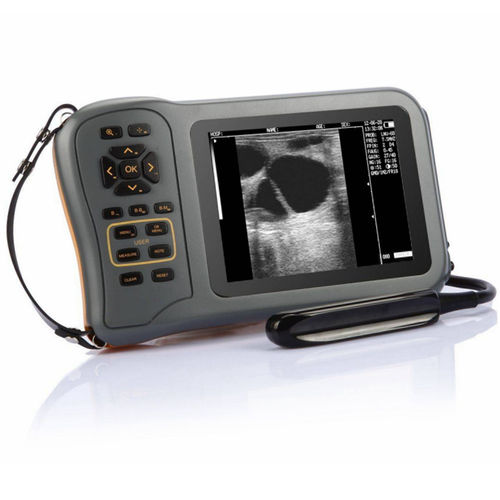

Hand-held veterinary ultrasound system V3multipurposefor large animalsB/W
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Exploration
- multipurpose
- Type of animal
- for large animals
- Options
- B/W
Description
V3, featuring premium image quality, considerate design for comfortable, fast and reliable detection of pregnancy and gynecological diagnostic in difficult field conditions on a daily basis.
Fast and reliable pregnancy from
28th day on cows
13th on mares
25th on sheep or goat
Maximum comfort while you work
Light weight, only 0.6kg;
5.8-inch WVGA LCD and excellent imaging quality and ergonomic design;
Versatile and easy use for all veterinary applications on bovine, equine, swine, etc;
Li-ion battery with 3 operating hours;
Images and videos export via USB 2.0 with 450 frame cine loop inside;
Software & Report for reproductive system, and measurement for distance, area, circumference, volume, angel, heart rate, etc.
Specification
Specification
Imaging Mode - B,B+B,B+M,M,4B - Display - 5.8 inches High-resolution Screen
Probe Type - Abdominal convex/
micro convex/
High frequency Linear/
Rectal convex/
Rectal linear probes available - Probe Frequency - Muti-frequency Depends
on probe type
Penetration Depth - Adjustable from 12cm to 22cm - High speed USB socket - connect to PC & Printer, download image to PC
External Connection
Support - USB
2.0/Video glass/Mouse - Battery - Li-ion battery,11.2V, 2600mAh
Operating Time - Up to 5 hours
continuous working - Charging time - Less than 1.5 hours
Cine-loop - 450 frames - Size (LxWxH) - 25x12x4 cm
