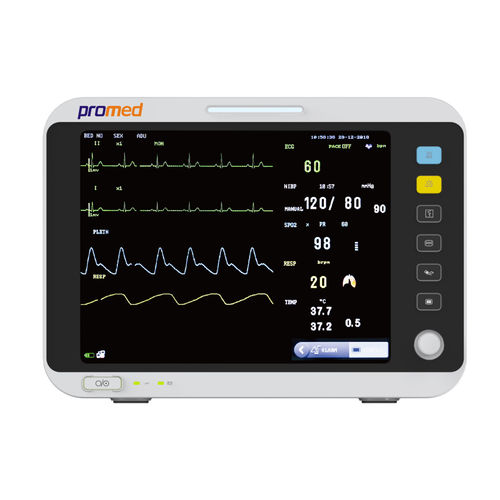

Veterinary patient monitor PM-12C

portableECGRESP

★ High-resolution color TFT LCD display. ★ Thinner and lighter in design, convenient and portable for users. ★ Real-time S-T segment analysis, pacemaker detection. ★ Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen. ★ 3-level audio/visual alarms. ★ Efficient resistance to interference of defibrillator and HF knife. ★ Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. ★ Built-in rechargeable lithium battery, 2-hour working capability. ★ Wireless central monitoring system applicable to ICU/CCU/OR Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery   Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer   Package Include: 1 x main unit 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) 1 x Blood pressure cuff (for NIBP) 1 x ECG cable (for ECG, RESP) 1 x Temperature probe (for Temperature)   ECG Input - 3/5 wire ECG cable Lead section - I II III aVR, aVL, aVF, V Gain selection - *0.25, *0.5, *1, *2, Auto Sweep speed - 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s Heart rate range - 15-30bpm Calibration - ±1mv Accuracy - ±1bpm or ±1% (select the bigger data) NIBP -   Test method - Oscillometer Philosophy - Adult, Pediatric and Neonate Measurement type - Systolic Diastolic Mean Measurement parameter - Automatic, Continuous measurement Measurement method Manual - mmHg or ±2% SPO2 Display Type - Waveform, Data Measurement range - 0-100%
