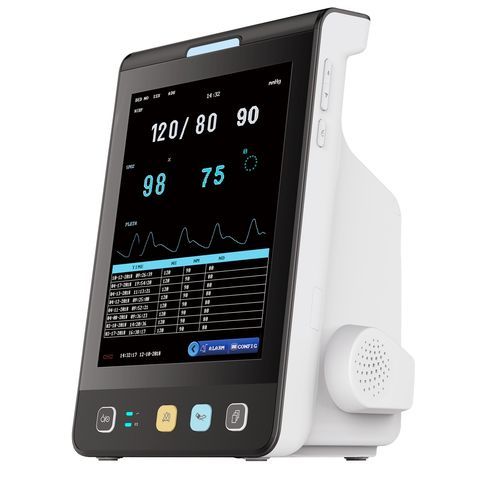

Portable patient monitor PM-8A

tabletopSpO2NIBP

high-resolution color TFT LCD display. Thinner and lighter in design, convenient and portable for users. Real-time S-T segment analysis, pacemaker detection. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife. Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage. Built-in rechargeable lithium battery, 2-hour working capability. Wireless central monitoring system applicable to ICU/CCU/OR Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA Battery: 11.1V 2200mAh rechargeable lithium battery   Standard configuration: SpO2, PR, NIBP, Optional Configuration: TEMP, Nellcor SpO2, Touch screen, Built-in Thermal Printer Package Include: 1 x Main Unit 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) 1 x Blood pressure cuff (for NIBP)   Option: 1 x Temperature probe   Technical Specification: NIBP -   Test method - Oscillometer Philosophy - Adult, Pediatric and Neonate Measurement type - Systolic Diastolic Mean Measurement parameter - Automatic, Continuous measurement Measurement method Manual - mmHg or ±2% SPO2 -   Display Type - Waveform, Data Measurement range - 0-100% Accuracy - ±2% (between 70%-100%) Pulse rate range - 20-300bpm Accuracy - ±1bpm or ±2% (select the bigger data) Resolution - 1bpm Temperature (Rectal & Surface) -   Number of channels - 2 channels Measurement range - 0-50℃ Accuracy - ±0.1℃ Display - T1, T2, ☒T Unit - ºC/ºF selection Refresh cycle - 1s-2s
