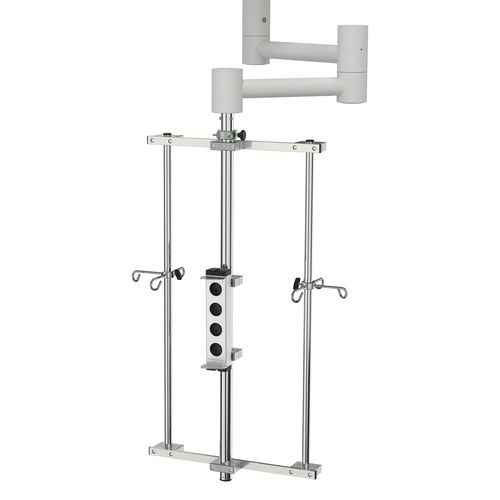

Ceiling-mounted IV pole system Z2N02292

6-hookheavy-dutystainless steel

The ceiling rail system from Provita permits the attachment of some of the most important medical devices and therefore optimizing the treatment of the patient. The systems ICS 1 and ICS 2 are rail systems whereas the ICS 3 is a swivel-carrier unit with an integrated electrical power supply. Advantages provides unhindered access to the patient thanks to a multifunctional room use adequate interior design thanks to individual configurability maximum flexibility within the intended work field enables an effective work flow system permits a flexible management of infusion pumps and devices with a maximum floor freedom pivotable Support Arm solution with integrated power supply full access to patient thanks to a maximum floor freedom Technology Reinforced bottle holder allows hanging 5 liters of rinsing solutions Room height:2,900 - 3,100 Bottle Holder:Stainless steel 2 bottle holders, each 3 safety bottle hooks Load capacity (kg):5 kg / hook, 40 kg / system Working radius:Ø 1,800 Support tube frame:2 stainless steel tubes Ø 25 mm and 2 stainless steel medical rails 25 x 10 mm (support frame), 6 aluminium-clamps Multiple socket outlet:4-fold (optional lockable) Power supply:integrated into the support arm Insulation sleeves:to electrically seperate the carrier system from the raw ceiling Angle of rotation:appr. 320° Features:distance frame to floor appr. 1.000 - 1.200 mm at clearance room heights shown on the right Grounding:with 4 connection pins Spacer discs:for vertically straight fixing Fastening material /ceiling cover:not included in delivery Basic equipment: yes Total load capacity (kg):40 Load capacity per hook (kg):5
