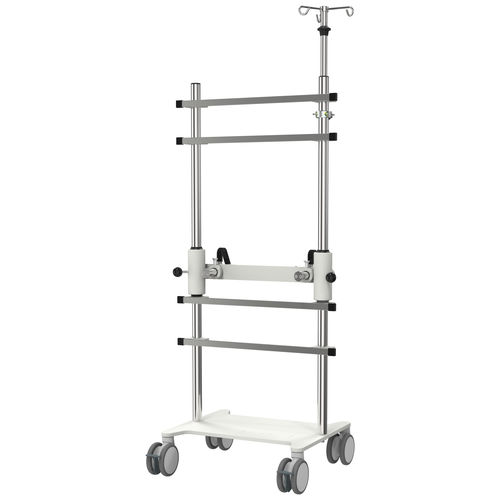

Medical cart IDOCK510

emergencyfor medical devicestransfer

safety mounting of devices being carried for an efficient patient transfer within the clinic guarantees the constant, medical patient care in case of emergency or patient transfer the compact design enables the entrainment in common elevators (of low construction) Integrated, variable spacers:0 - 60 mm [Standard] - up to 170 mm as optional accessory Number of hooks:3 Arrangement of the hooks:120° to each other Load capacity (kg):50 kg Type of height adjustment:One-hand height adjustment Maximum length/height:1,940 Minimum length/height:1,770 Extends the bed by:appr. 415 Medical rails:4 pcs. each 25 x 10 x 680 Tube version:1 tube, 1 IV-Pole Round tubes length:1.350 mm Round tubes diameter (mm):Ø 38 mm Round tubes wall thickness (mm):2 mm Distance round tube - IV-Pole:500 mm Size of base plate (mm):appr. 510 x 600 Castors:Twin castors Castor diameter:Ø 125 mm Bed mounting:Height adjustable docking bar with 2 docking hooks Docking bar:standard Grounding:through grounding ring Total load capacity (kg):50 Load capacity per system (kg):6 Load capacity per hook (kg):2
