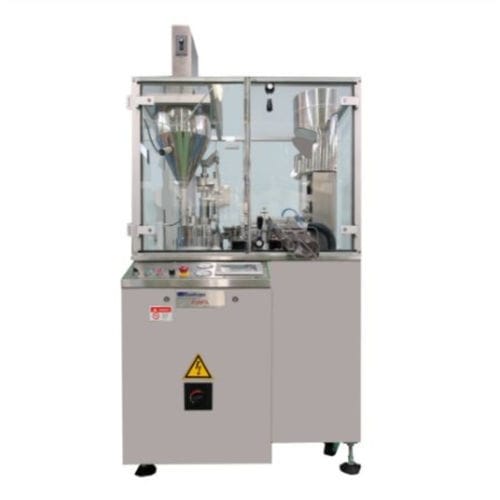

Fully-automatic filling machine FP-40 EasiFILL
vacuumscrewfloor-standing

fully-automatic filling machine
fully-automatic filling machine
fully-automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
fully-automatic
Type
vacuum, screw
Configuration
floor-standing
Product applications
for capsules, powder
Container type
can
Application domain
for the pharmaceutical industry
Production capacity

40,000 p/h

Weight

1,200 kg
(2,645.5 lb)

Length

1,100 mm
(43.31 in)

Width

1,200 mm
(47.24 in)

Height

2,200 mm
(86.61 in)

Description

A fully-automatic system for filling hard capsules with powder, granules, or pellets. The FP-40 EasiFILL system has superior cost performance. *Filling with pellets and granules are options. The filling station consists of 10 segments, with each segment transporting 6 capsules. A screw housed inside the powder hopper ensures that a constant amount of powder is fed. Equipped with interlock mechanisms for situations such as out of capsule, out of powder, and door limit, and a stop alarm will sound if necessary. The slag powder formed in the dosing tube is held under vacuum until it is loaded into the body, allowing for more accurate filling. The amount of powder intake in the dosing tube can be easily adjusted. There is no need to prepare replacement parts for different filling volumes. (Except for special circumstances such as small-volume filling) Size changes and re-assembly after disassembly can be completed in less than 30 minutes. Repeatability is ensured without the need for fine adjustments. The drive unit cam is made up of individual components, facilitating replacement. The FP-40 EasiFILL has excellent maintainability.
