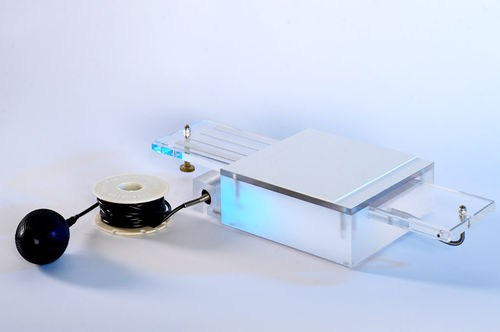

Fluoroscopy test phantom QUART DSA

general purpose

The QUART DSA test phantom is designed for maximum precision in QA/QC of Digital Subtraction Angiography equipment. It is a Type B design which maximises QC performance in subtraction angiography applications. Unique in its kind, the phantom features longitudinal sliding technique to minimize structural movement artefacts in the picture. In comparision, Type C phantoms, which are more common in the QA market, can exceed artefact limits caused by transversely forced movements. After simulating the injection process, the QUART DSA immediately reveals the lateral borders of the contrast wedge. The low contrast steps are clearly visible and can be well defined in the test image. Phantom Details Phantom Description Phantom Body Dimension: 150x150x57 mm (LxWxH) Clearance for movable slider: 90x10 mm (WxH) Slider: PMMA 300x90x9.5 mm (LxWxH) Vessel Simulation: 4 aluminium strips (Purity: 99.5% (guaranteed); Thickness: 0.05 / 0.1 / 0.2 / 0.4 mm; Width: 10 mm each / Distance: 10 mm between each) Dynamics Wedge: 7 copper steps (0.2 – 1.4 mm) Level Test to check Logarithm Correctness: (1 step of copper 0.2 mm) Pneumatic Remote Control (Length: 7m)
