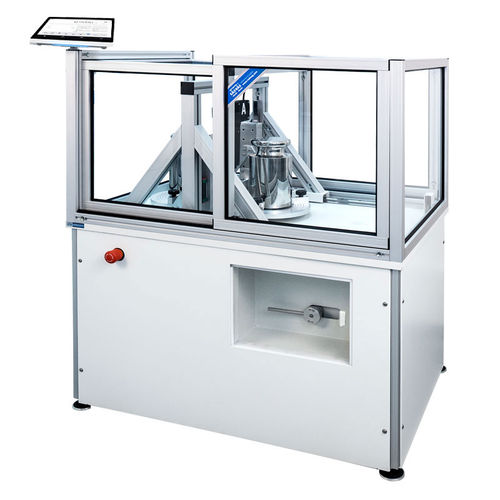

Automatic mass comparator AKM-2

digitalwith touch screen

Mass comparator AKM-2 series featuring automatic mass loader enables automatic determination of mass deviations of a single weight in a single cycle. The system of automatic mass comparator is commonly applicable in mass measuring laboratories, and particularly in certification units for weights classes E, F and M. Design and functionality: The supervising part of a mass comparator is a digital module which cooperates with a controller of instrument’s mechanical components. The automatic mass loader features a basis with self-centring fields, a robot and a steel body. The digital module and the robot are located in mass comparator’s weighing chamber. The loading robot is controlled by the computer’s controller. The instrument is operated by means of digital display which is plugged to mass comparator’s controller. Lengthwise shift of the loading robot with weights is carried out automatically using solenoid actuators. Additional software functions enable loading and taking off the weights, data processing and storing, and data export to instrument’s memory. Adjustment external Display 10″ touchscreen Supplementary weights internal half automatic Supplementary weights external - Communication interface USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot Power supply 100 – 240 V AC 50/60 Hz Operating temperature +15 ÷ +30 °C Operating temperature change rate ±0,5°C/12h (±0,3°C/4h) Relative humidity 40% ÷ 60% Relative humidity change rate ±5%/12h (3%/4h) Weighing pan dimensions ø90 mm Weighing device dimensions 950×650×1150 mm Controling device dimensions 249×170×72 mm Packaging dimensions 1050×800×1320 mm Net weight 230 kg Net weight 230 kg Gross weight 350 kg
