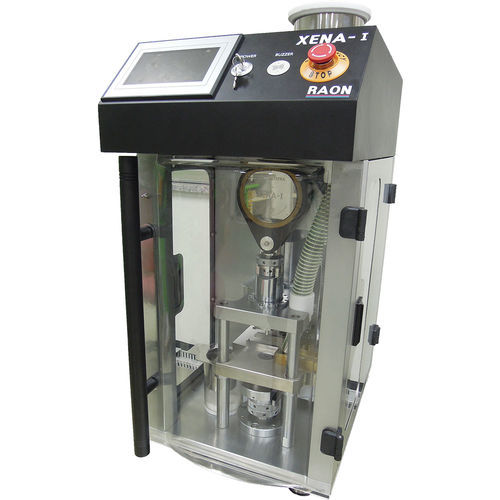

Auto Single Stroke Tablet Press for small batches - R&D instrument to reproduce the characteristics of a rotary tablet press.
The XENA-I could be placed anywhere the operator wants thanks to its dimensions. It can be equipped also with multi-punch.
Maximum Compression :
50KN
Maximum Tablet Diameter :
25mm
Station Number :
1
Deep of Fill :
20mm
Upper Punch Penetration :
~8mm
Output :
2000 Tablets/Hour
Size :
915(H) x 435(W) x 680(D)mm
1055(H) x 435(W) x 680(D)mm
Power :
220V(1Ph) , 50/60Hz , 1KVA
Weight :
300KG [Approxi
7” Touch Screen
Four Safety Sensor
Emergency Switch
