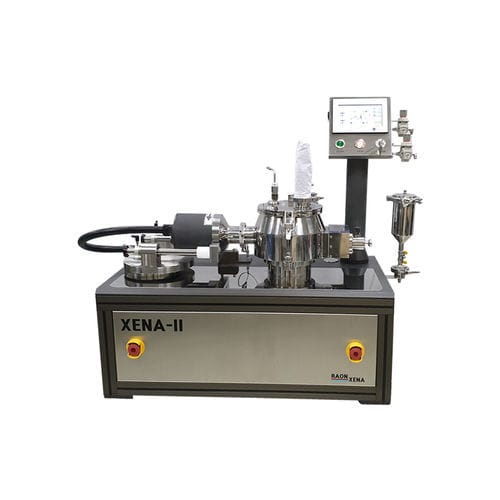

Mixer with interchangeable bowls XENA - II

verticalhorizontalsample preparation

The XENA-II, Lab Scale High Shear Mixer Granulator has been designed to turn a fine-powder heterogeneous mixture into a uniform granulation, with increased particle size and higher density. High shear wet granulation process is extensively used in pharmaceutical industry to transform fine heterogeneous powders into homogeneous blend of granules with bigger size and density to improve flow and compactability for tableting operation. Bowl : Interchangeable bowls 1,2,4,6 Liters (Real Volume/Single type) Maximum Compression - Frame : SUS304 & AL PROFILE - Bowl, Impeller, Chopper : SUS316L - Bowl Lid : Tempered glass with stainless steel rim - Lid Seal : Silicone - Motor Seal : Silicone Impeller - Motor Power : Servo 2.0Kw - Air Blower Chopper - Motor Power : Servo 0.7Kw - Air blower Peristaltic Pump : Watson-Marlow (Option) Compressed Air : 5bar Size : 1090(W) X 500(D) X 1035(H)mm Power : 220V(3Ph), 50/60Hz, 3KVA Weight : 150KG [Approxi 7” Touch Screen Multi Recipe Function Real-time Torque & Speed analysis Graph Screen Shot function Outlet of Printing Report (USB) Data graph Display & Save (DAQ Program-Data Acquisition)
