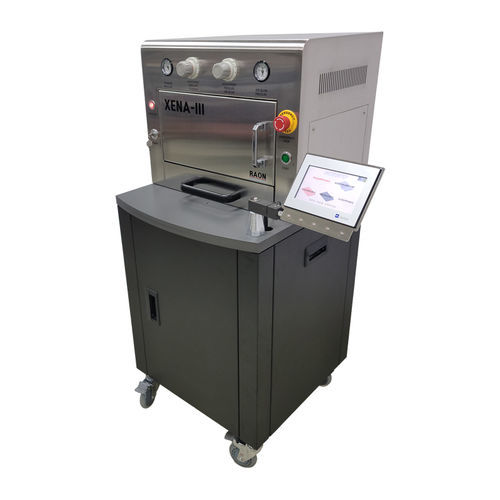

The XENA-III, Semi-Automatic Blister Packing Machine offers a 3-in-1 manufacturing process for low volume blister packaging including forming, sealing and perforating/cutting.
All operations needed for blister packaging are carried out simply and quickly on the same machine, by changing and replacing the format-related parts and with no need to resort to wrenches or specialized personnel.
Materials :
PVC/ALU, PVDC/ALU, PETG/ALU, PVC/CRAFT PAPER, ALU/ALU
Max. Forming Depth :
PVC/ALU : 15mm, ALU/ALU : 10mm
Blister Sizes :
136*100mm [Blister per cycle : 2] For PVC/ALU
100*68mm [Blister per cycle : 1] For ALU/ALU
Temperature :
20~200°C
Common Tool :
Forming Heating Tool (Forming Upper Mold)
Sealing Heating Tool (Sealing Upper Mold)
Cutting Tool ( Cutting board & Blade)
Compressed Air :
5bar
Power :
220V(1Ph), 50/60Hz, 2KVA
7” Touch Screen
Auto Temperature Control
Automatic Step Control
Format parts Detection Sensor
Easy setup HMI
Tool-less changeover of format parts in less then 90 seconds.
