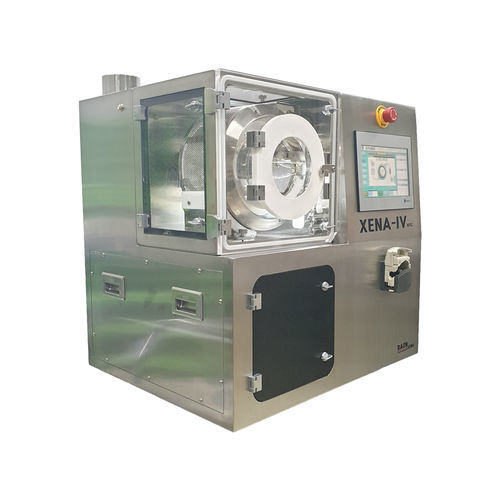

The XENA-IV BTC is a fully integrated, recipe-driven R&D scale tablet coating system with exchangeable drums.
More than just a film coater. It is a practical and highly functional coating platform for many processes, including those in which high weight gain, drug layers, and modified release coating materials are essential. User-friendly controls require minimum operator training. The process recipes can be stored by the system.
Drum
: Interchangeable Drum 210mm(0.5L) , 240mm(1L) , 290mm(2L)
Drum Speed
: ~40RPM
Air Flow
: 30~180㎥ / Hour
Max. Bed Temperature
: 60℃
Temperature Control
: 30 ~ 85℃
Supply Filter
: Pre Filter, Medium Filter, HEPA Filter(Option)
Exhaust Filter
: Membrane Filter
Nozzle
: [Standard]
Model : SCHLICK Nano-ABC / Spray Angle : 10°~ 60°
Orifices : 0.5mm
Drum : 0.5L/1.0L/ 2L
[Option]
Model : SCHLICK Lab. 970 / Spray Angle : 10°~ 60°
Orifices : 1.0mm, 1.2mm
Drum : 2L
Atomizing/Pattern Air Control
: 0.5 to 3 Bar
Solution Pump
: Watson-Marlow Peristaltic Pump
Peristaltic Pump RPM
: 2.5 – 60RPM
Compressed Air
: 5bar
Power
: 220V(1Ph), 50/60Hz, 4.5KVA
Size
: 850(H) X750(W) X 690(D)mm (With Peristaltic Pump & Hood)
Weight
: 100KG [Approxi
10.2” Touch Screen
Multi Recipe Function (User Login)
Temp, Supply Air, Exhaust Air PID Tuning or manual tuning method
Temperature control selection “Supply or Exhaust” / Temperature control error range : ±0.5°C
Temperature and air volume control : PID or setpoint
Supply & Exhaust filter : Easy to detach and clean
Coating Room Lighting
