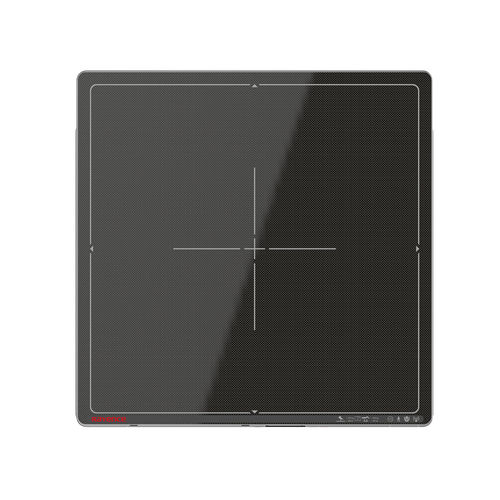

Multipurpose radiography flat panel detector 1717WCC·WGC

portablewirelesswaterproof

Reliable functionality considering useHigh resolution at low dose High resolution at low dose High Sensitivity and clear image at low dose Illuminated OLED window indicates detector’s status Image preview time ≤ 2 sec Image storage : 1,300 Images High-reliability solution Advanced protection against the shock, vibration, scratch (Supporting up to 300kg) Equippted with user-friendly function Easy Sync : No need an electrical connection with generator Easy Drive : Acquired x-ray images can be viewed on any mobile device Specification Sensor Type a-Si TFT Scintillator CsI / GOS Total Pixel Matrix (Pixels) 127 : 3328 x 3328 140 : 3072 x 3072 Active Area (mm) 127 : 422.7 x 422.7 140 : 430.1 x 430.1 Pixel Pitch (㎛) 127 / 140 Frame Rate (fps) N/A (Static) Energy Range (kVp) 40 ~ 150 Resolution (lp/mm) 127 : 3.9 140 : 3.5 A/D Conversion (bits) 14 / 16 bits Data Interface GigE 802.11a/g/n/ac Dimension (mm) 460 x 460 x 15 Weight (kg) 3.5 (incl. battery)
