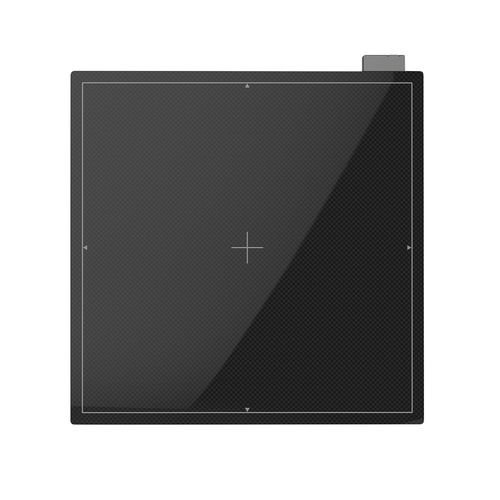

Multipurpose radiography flat panel detector 1717SCV

portable17 x 17

Data transfer avaliable with commercial Lan cable Easy and fast installation and maintenance avaliable Easy and fast DR upgrade Easy upgrade without any modification to x-ray equipment 15mm thickness as traditional film screen existing cassette High resolution, High quality images 127/140㎛ Pixel Size for High-Resolution Images High sensitivity without loss of radiation Proven solution with large active area and Improved Workflow Image preview time ≤ 2 sec Specification Sensor Type a-Si TFT Scintillator CsI Total Pixel Matrix (Pixels) 127 : 3328 x 3328 140 : 3072 x 3072 Active Area (mm) 127 : 422.7 x 422.7 140 : 430.1 x 430.1 Pixel Pitch (㎛) 127 / 140 Frame Rate (fps) N/A (Static) Energy Range (kVp) 40 ~ 150 Resolution (lp/mm) 127 : 3.9 140 : 3.5 A/D Conversion (bits) 14 / 16 Data Interface GigE Dimension (mm) 460 x 460 x 15.6 Weight (kg) 4.0 kg
