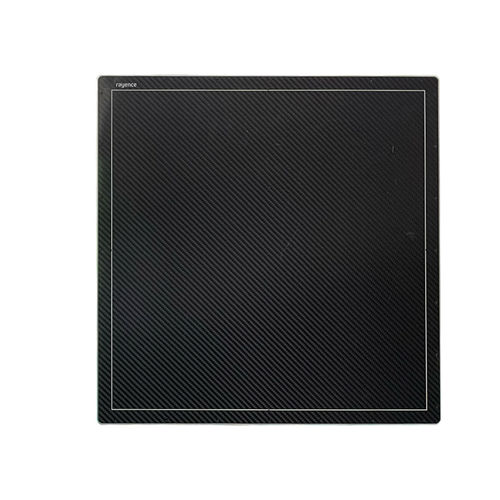

Multipurpose radiography flat panel detector 1717FCC·FGC

for fluoroscopyportablewireless

Dynamic detector for Diagnosis & Surgery Outstanding performance for accurate and fast diagnosis Supporting optimized RF driver mode for RF application IGZO detector providing superior image quality at low dose No Image lag at high speed Accurate dianosis at High DQE & SNR (Increased DQE up to 80%, Increased SNR up to 25%) Enables get good Image quality at reduced dose more than 30% High performance providing High resolution image Fast frame rate max. 15fps by 5Giga Ethernet Specification Sensor Type a-Si TFT Scintillator CsI / GOS Total Pixel Matrix (Pixels) 3072 x 3072 (@1x1) 1536 x 1536 (@2x2) Active Area (mm) 430.1 x 430.1 Pixel Pitch (㎛) 140 (@1x1) 280 (@2x2) Frame Rate (fps) (6/15) / 9 (@1x1) (22/30) / 30 (@2x2) *(GigE/5GigE) / C-link Energy Range (kVp) 40 ~ 150 Resolution (lp/mm) 3.5 A/D Conversion (bits) 14 / 16 Data Interface GigE / 5 GigE / C-link Dimension (mm) 470 x 470 x 50 Weight (kg) 6.1
