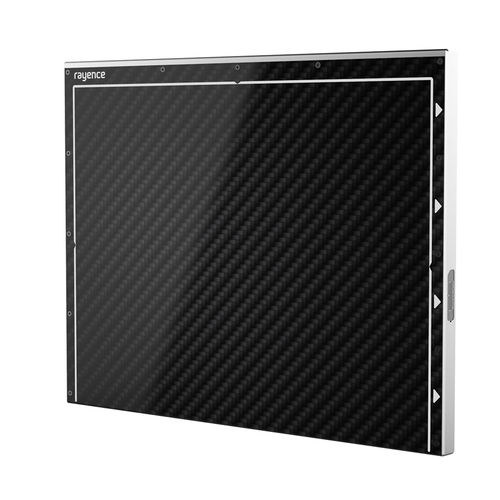

Mammography flat panel detector 2430MCA

portablewireless9 x 12

Easy and Fast DR Upgrade Compatible with analog system without any modifications to x-ray equipment More efficient and economical than using film screen or CR Image quality that parallels high-end FFDM systems 70㎛ pixel size for High-Resolution Images High-performance CMOS sensors for mammography providing fast and clear image quality Automatic detection of patient dose Smart AEC Control Getting 60% wider AEC area than others Prevention of patient over exposure with outstanding x-ray transmission Optimized design for mammography imaging No required calibration of system AEC Specification Sensor Type CMOS Scintillator CsI Total Pixel Matrix (Pixels) 3312 x 4344 Active Area (mm) 231.8 x 304.0 Pixel Pitch (㎛) 70 (@1x1) 140 (@2x2)​​ Frame Rate (fps) 3.6 (@1x1) 12.7 (@2x2) Energy Range (kVp) ~50 Resolution (lp/mm) 7.1 A/D Conversion (bits) 14 Data Interface GigE Dimension (mm) 253.7 x 327.5 x 14.2 Weight (kg) 2.2
